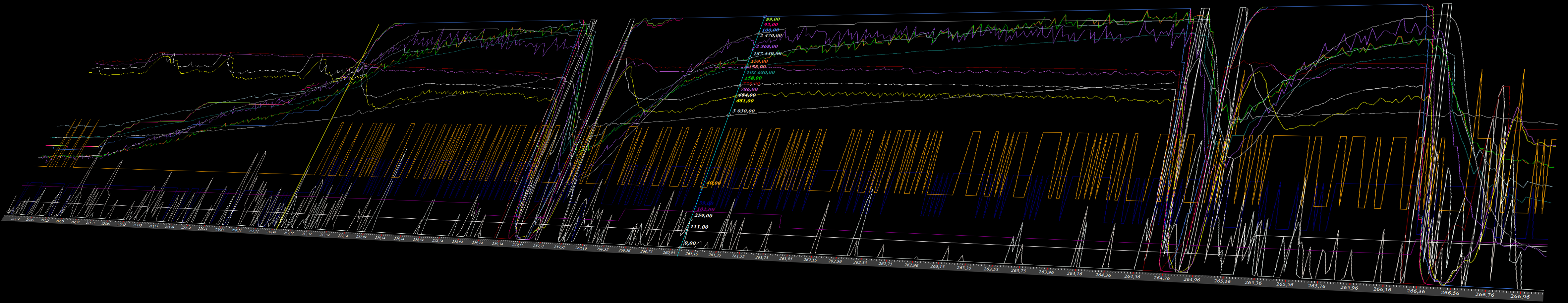

ECU Datalogging - Live Tuning

Every tuning company can show a laptop connected to a car. Every company can say its software is custom. Every company can advertise a horsepower number. The difference begins when the engine is placed under real load and the calibration has to prove that it is doing exactly what was intended.

At Eagle Tuning, datalogging is not an optional check performed after a file has already been declared finished. It is the foundation of the calibration process. We log the vehicle before tuning, during development, and after the important revisions. We compare what the ECU requests with what the engine, turbocharger, fuel system and transmission actually deliver. We do not judge a tune from how quickly the throttle responds in the parking lot, how loud the exhaust becomes, or how impressive one boost value looks on a phone screen.

We place the vehicle under meaningful load. We record the control system chronologically. We review the relationships between hundreds of available measurements. Then we change the calibration for that vehicle—not for a theoretical vehicle with the same badge, and not for the last car that happened to share the same engine code.

This is the core of Eagle Tuning: log, analyze, calibrate, repeat.

Our shop is dedicated to ECU and TCU calibration. We are not dividing the appointment between an oil change, a brake job, an electrical installation and a tuning session. When your car arrives for a custom tuning appointment, that car is the project. While you have coffee, watch a movie, work from the waiting area or play PlayStation, we handle the process from identification and baseline logging through calibration, revision and final validation.

For supported ECUs, we use VehiCAL to access measurement data at a much deeper level than a generic scan tool. On compatible controllers, full-RAM logging can expose thousands or tens of thousands of potential parameters at high speed. On applications with LIVE support, we can combine the logger with WinOLS and change supported calibration areas while the engine is running. This does not eliminate engineering judgment. It gives us a faster and more precise way to apply that judgment, observe the response and continue development without waiting through a complete flash cycle for every fine adjustment.

The result is a tune based on evidence. Boost is not assumed; it is measured. Lambda is not assumed; requested and actual values are compared. Fuel pressure is not assumed; the complete pull shows whether it follows target. Ignition quality is not reduced to one correction value; it is evaluated by cylinder, load, temperature and repetition. Torque delivery is not judged only by peak output; ECU and TCU requests are examined through the shift and across the usable rpm range.

That is what custom tuning means at Eagle Tuning.

Datalogging in One Sentence

ECU datalogging is the high-speed recording of selected engine, transmission and vehicle parameters over time so that a calibrator can see how the control system behaves before, during and after a calibration change.

The phrase “over time” is important. A diagnostic scanner can show that rail pressure is 210 bar at one instant. A datalog shows the requested pressure, actual pressure, engine speed, load, fuel-pump command, lambda, throttle position and ignition behavior throughout the entire acceleration event. It shows when the values separate, what else changed at that moment, whether the ECU intervened and whether the condition repeats.

A fault code is an event summary. A datalog is the sequence that leads to the event.

An ECU may store no fault code even when the vehicle is not producing the expected power. The throttle may close briefly because calculated torque exceeded a limit. The wastegate may approach maximum control while actual boost remains below request. High-pressure fuel may begin falling near redline but recover before crossing the diagnostic threshold. Intake-air temperature may rise enough for the ECU to reduce ignition without creating a warning. The driver experiences a car that feels inconsistent; the control unit may still consider every individual value technically plausible.

Datalogging exposes those relationships. It allows us to distinguish a calibration issue from a mechanical limitation and a genuine fault from normal control activity.

Why a Custom Tune Cannot Be Developed From the File Alone

An ECU binary contains calibration data, strategies, models and limits, but the file cannot tell us the complete condition of the car sitting in the shop. It does not tell us whether the owner filled the tank with the expected fuel. It does not confirm that every charge connection is sealed, the spark plugs are healthy, the turbo actuator is adjusted correctly or the high-pressure pump maintains its requested output under load.

Two apparently identical cars can respond differently. Production software revisions may use different logic. One vehicle may have accumulated deposits, another may have a marginal ignition coil, and another may have an aftermarket intake that changes airflow measurement. Ambient temperature and barometric pressure change the operating point. Transmission software can alter the torque the engine is permitted to deliver. A previous tune may have changed code or data outside the maps normally compared.

The calibration file provides the request. The log shows the response.

Without that response, the tuner is working from assumptions. A file can be well designed for its intended combination and still be wrong for a car with different hardware, different fuel or an unresolved mechanical problem. This is why Eagle Tuning does not equate “custom” with entering a VIN, selecting a stage from a database and changing the customer name on a file.

A real custom process begins when the car provides data.

Parking-Lot Revving Is Not a Load Test

An engine can sound clean while revving in neutral and behave completely differently when the drivetrain places it under load. With little resistance, the engine moves through rpm quickly, cylinder filling is limited, the turbocharger may produce very little pressure, fuel demand remains low and the transmission is not carrying meaningful torque.

Many problems appear only when airflow and cylinder pressure rise. An ignition coil may fire normally at idle and misfire at high boost. A fuel pump may hold pressure at part throttle and fall behind at high rpm. A charge pipe may seal during a quick rev and leak as pressure builds. A turbo control strategy may look stable in first or second gear but overshoot during a longer pull in a higher gear. Transmission intervention cannot be assessed when the vehicle is stationary.

That is why Eagle Tuning logs under load. The objective is to reproduce the operating region that matters while capturing enough data to understand it. A meaningful acceleration log commonly begins in a controlled rpm range and continues smoothly through the area being calibrated. For many projects, that means collecting a clean pull from approximately 2,000 rpm toward the upper usable range in an appropriate gear, provided the vehicle, conditions and project allow it.

We are not looking for random bursts of throttle. A clean log has a clear beginning, stable gear, deliberate pedal input and enough duration for boost, airflow, fuel and temperature behavior to develop. Consistency between runs makes the comparison useful.

Why We Log in Real Road Conditions

A vehicle is not driven inside a spreadsheet. It accelerates its actual mass through its actual drivetrain while outside air moves through the intake, intercooler, radiator and engine compartment. Tire load, gear ratio, aerodynamic resistance, transmission behavior and the complete vehicle network participate in the event.

Real-road logging lets us evaluate the calibration in the environment where the owner will use it. The turbocharger experiences a realistic rate of acceleration. The cooling system receives real airflow. The transmission changes gears under the car's actual inertia. Traction and torque-management systems respond to the real chassis. The log reflects the assembled vehicle rather than an engine operating in isolation.

This does not mean a chassis or engine dyno has no value. A good dyno provides repeatable conditions and controlled testing, and steady-state calibration is difficult to reproduce on the road. The point is that road data answers a different and necessary question: how does the complete car behave under real driving load?

Eagle Tuning combines real-road datalogging with Road Dyno measurement where appropriate. Our wheel-mounted Road Dyno system allows us to quantify acceleration-based performance under the vehicle's actual road load while the ECU log records what created that result. The measurement tells us what the car did. The datalog tells us why.

A power curve without ECU data can show a dip but not identify its cause. A log without any performance reference can show control behavior but may not reveal how much the change affected the delivered result. Used together, the two views make development more complete.

Logging Is Measurement, Not Decoration

Some tuning workflows collect a log only so the customer can be told that logging occurred. A short idle recording is saved, no requested-versus-actual relationships are graphed, and the original file is never meaningfully revised. That is not log-driven calibration.

At Eagle Tuning, a log must answer a question. Before recording, we decide which system is being evaluated and which channels are needed to distinguish the possible causes. During review, we align the channels on the same time axis and examine the exact point at which behavior changes. After a calibration revision, we reproduce the test and compare the new response with the previous run.

If actual boost is lower than target, “add wastegate duty” is not automatically the correct answer. The throttle may be closing. A torque limiter may be active. The diverter valve may be leaking. The actuator may be incorrectly adjusted. The turbo may be outside its efficient flow range. The intake may be restrictive. Exhaust energy may be insufficient at that point. Each possibility produces a different pattern across the log.

If ignition timing is lower than expected, “add timing” is not automatically the answer. Intake temperature may be high. Fuel quality may be poor. The ECU may be responding to knock. Lambda may have moved away from target. A torque intervention may be commanding a reduction. The base timing request may already be appropriate for the load.

Measurement becomes useful only when the person reading it understands the control strategy behind the numbers.

VehiCAL: High-Speed Access to the ECU's Internal Data

Generic OBD-II logging is useful for broad diagnostics, but its parameter list and update rate are often too limited for advanced calibration. It may provide engine speed, throttle, a pressure value, a generic fuel-trim channel and ignition advance. Those measurements can reveal obvious problems, yet they may omit the internal requests and control states needed to understand why the ECU behaved a certain way.

Eagle Tuning uses VehiCAL Logger on supported applications because it is built around calibration development. According to its current technical documentation, supported advanced protocols can access complete memory areas for RAM logging, record at rates up to 100 Hz, and expose far more ECU measurements than a normal diagnostic logger. The available depth varies by control unit: a conventional protocol may provide hundreds or several thousand defined measurements, while a RAM-loggable controller may expose tens of thousands.

This does not mean we select 20,000 channels for every pull. More channels can reduce sampling quality and make the log harder to interpret. The advantage is choice. Instead of being restricted to a small generic PID list, we can select the precise internal variables relevant to the engine and calibration strategy.

On compatible vehicles, VehiCAL can also log multiple controllers together. That can include the master and slave engine ECUs on a dual-ECU platform, the transmission control unit, and on certain Mercedes projects the CPC. Synchronized data helps us see whether an engine event originated inside the engine ECU or was requested by another module.

For example, a throttle closure may look like a boost-control problem if only the engine pressure channels are visible. When torque requests and transmission intervention are recorded on the same timeline, it may become clear that the gearbox asked the engine to reduce torque during a shift. That is normal coordination, not a boost fault. The question is whether the reduction occurs at the correct time and whether the engine and transmission return cleanly to the intended request.

What “RAM Logging” Actually Means

The ECU calculates and stores working values in memory while the engine is running. These values can include internal torque requests, filtered sensor signals, modeled air charge, controller outputs, adaptation values, limit states and intermediate results that are never made available as standard diagnostic PIDs.

On supported ECUs, RAM logging allows VehiCAL to observe selected memory variables directly. This provides a much deeper view of the control strategy. We can often see not only the final throttle angle or boost pressure but the request, the controller state and the limiter that influenced the result.

The practical value is resolution. Suppose a turbocharged engine briefly loses torque at 5,400 rpm. A basic logger may show engine speed, manifold pressure and throttle, with each channel updating slowly. The event could appear as three unrelated values. A high-speed RAM log may show the permitted load changing first, the throttle controller responding next, wastegate command changing after that, and actual pressure following. The chronological order identifies the intervention rather than merely documenting the symptoms.

High rate alone is not enough. Logging one hundred samples per second of the wrong channels still produces incomplete evidence. The calibrator must know which internal variable represents the active request, which value has been filtered, which torque path is authoritative and which bit or state indicates a limitation. The tool provides access; interpretation creates the tune.

Why Sample Rate Matters

Engine events happen quickly. At 6,000 rpm, a four-stroke engine completes 50 combustion cycles per second in each cylinder. A shift torque reduction, boost overshoot or throttle intervention can occur in a fraction of a second. If the logger updates a channel only a few times per second, the most important part of the event may be averaged, delayed or missed completely.

A higher sample rate provides more points across the transition. It can show whether boost crossed target before the throttle closed, whether fuel pressure began falling before lambda changed, or whether timing reduction occurred as temperature rose. It also makes the shape of control oscillation visible.

The fastest possible rate is not always the correct configuration. ECU communication bandwidth is finite. Selecting too many channels can lower the effective rate per channel. Eagle Tuning creates logging groups for the question being investigated. A boost-control group may prioritize pressure, wastegate, throttle, load and rpm. A fuel group may prioritize low- and high-pressure targets, actual pressures, pump control, lambda and injector data. A shift group may focus on reported torque, requested reduction, clutch behavior, gear and transmission temperature.

Focused logging produces cleaner answers than recording every available variable because the list looks impressive.

Requested Values vs. Actual Values: The Foundation of Log Analysis

The most important pattern in calibration data is the difference between what the control unit wants and what the physical system delivers.

Requested boost compared with actual boost tells us whether the turbo system follows the target. Requested lambda compared with measured lambda tells us whether the delivered mixture matches the calibration. Requested rail pressure compared with actual pressure shows whether the fuel system maintains demand. Requested cam position compared with actual position reveals whether the variable-timing system reaches its target. Requested torque compared with permitted and reported torque shows how the engine and transmission negotiate output.

A difference is not automatically a fault. Physical systems require time to respond. Pressure can overshoot slightly during a transient. Cam position cannot move instantaneously. Lambda sensors and filtered values have delay. The ECU may intentionally reduce a request because another protection or torque path has priority.

The calibrator evaluates the size, duration, direction and repetition of the difference. A small momentary deviation during spool means something different from a pressure target that is missed throughout the entire upper rpm range. A single lambda fluctuation after a shift means something different from mixture becoming progressively leaner while fuel pressure falls.

This is why one screenshot at peak boost cannot validate a tune. The shape and sequence matter.

The Main Parameters We Analyze

The exact channel names vary among Bosch, Continental, Siemens/Continental, Denso, Delphi, Marelli and other ECU families. Even within Bosch MG1 or MED17, manufacturers can use different torque structures and naming. The following groups explain the engineering questions behind the channels rather than pretending one universal list applies to every vehicle.

Engine speed, vehicle speed and gear

RPM is the reference axis for most performance analysis. It lets us identify spool threshold, torque peak, shift point and the upper-rpm airflow trend. Vehicle speed and selected gear confirm that the run occurred in the intended ratio and allow comparison between tests.

Gear matters because the time under load changes. A short lower gear may hide heat, fuel or control issues that appear during a longer pull. Many modern ECUs and TCUs also use gear-dependent torque limits. Comparing two logs collected in different gears without acknowledging that difference can lead to the wrong conclusion.

Accelerator request, throttle position and throttle intervention

The accelerator pedal usually represents the driver's torque request, not a direct mechanical command to open the throttle. The ECU interprets that request through drive mode, traction, temperature, gearbox and torque limits.

We compare pedal position, requested torque, throttle request and actual throttle angle. If the driver remains at full pedal but the throttle closes, the closure may be intentional control. The next question is which torque or protection path requested it.

An engine can lose airflow even while the turbo continues producing pressure upstream of the throttle. Looking at boost without throttle position can make the turbo appear responsible for a torque reduction it did not initiate.

Requested load, actual load and cylinder filling

Load is a normalized representation of how much air and torque the engine is producing relative to a reference. Depending on the ECU, it may be based on air mass, cylinder charge, torque modeling or a related calculated quantity.

Stage 1, Stage 2 and Stage 3 calibrations commonly revise requested load and the limiters that govern it. We log the request, actual or modeled value, and active limitations. If requested load remains high while actual load falls at high rpm, the turbo may be out of flow, the throttle may be intervening, intake temperature may be influencing permitted load, or the control system may be reaching another boundary.

Load is more informative when combined with air mass, pressure and ignition than when treated as a standalone percentage.

Manifold pressure, boost target and barometric pressure

Boost is manifold pressure above atmospheric pressure. Many ECU channels report absolute pressure, which includes the surrounding atmospheric pressure. Confusing absolute and gauge pressure can create a difference of roughly one bar near sea level before any tuning analysis has even begun.

We compare the correct requested and actual pressure channels and account for barometric pressure. Pressure ratio—the compressor outlet absolute pressure divided by compressor inlet absolute pressure—helps describe how hard the turbo is working. The same gauge boost does not represent the same pressure ratio at sea level and at high altitude.

Boost is not power. A larger turbo can move more air at the same manifold pressure. A restrictive or inefficient system can show a large pressure number while delivering less oxygen mass and more heat. This is why Eagle Tuning never calibrates from boost alone.

Garrett's explanation of compressor maps is useful here: turbo operation depends on mass flow, pressure ratio, compressor efficiency, surge margin, choke flow and turbo speed. A single boost number cannot describe that operating point.

Wastegate duty, actuator position and boost control

The wastegate controls how much exhaust energy bypasses the turbine. Depending on the system, the ECU may command a pneumatic solenoid duty cycle, an electronic actuator position or a modeled flow target. The meaning and direction of the percentage are not universal.

We examine pre-control, feedback correction, requested position and actual position where available. High wastegate effort combined with low actual boost can suggest a leak, actuator problem, inlet restriction, insufficient turbine energy or a turbo that has reached its practical flow region. Low effort with overshoot can point toward excessive actuator preload, incorrect base control or a target transition that is too aggressive.

Oscillation is equally important. If boost repeatedly crosses above and below target while the wastegate controller chases it, the car may feel like it surges even though the average boost appears correct. A good calibration controls the path, not only the final value.

Air mass and volumetric behavior

Mass airflow is closer to the oxygen available for combustion than pressure alone. On vehicles with a MAF sensor, we can compare measured grams per second with rpm, pressure, temperature and the expected turbo range. On speed-density systems, the ECU calculates air charge from pressure, temperature, engine speed and modeled volumetric efficiency.

An airflow curve that flattens while boost rises may indicate that the turbo is adding heat rather than useful mass, the head or intake path has become restrictive, or the measurement model is inaccurate. A sudden airflow drop can follow throttle closure, cam movement or a sensor disturbance.

Aftermarket intakes can affect MAF readings if the sensor housing diameter or local airflow pattern changes. A calibration must account for the actual hardware instead of assuming that a smooth-looking pipe preserves the original sensor transfer function.

Intake-air temperature and heat soak

Intake-air temperature influences air density, knock tendency and the ECU's permitted load or ignition. Its value depends on sensor location. A sensor before the compressor measures something different from a TMAP sensor in the charge path or intake manifold.

We look at the starting temperature, the rise during the pull, the peak, and the recovery between runs. An upgraded intercooler may not produce a dramatic difference on the first cold acceleration but can prevent the second and third runs from losing timing or load.

Heat soak is not diagnosed from one final temperature. We compare similar runs and examine whether ignition correction, boost effort or torque intervention changes as the system warms.

Lambda, AFR and bank-to-bank behavior

Lambda describes the commanded or measured air-fuel relationship relative to the stoichiometric value of the fuel. A lambda of 1.00 represents stoichiometric combustion for the fuel in use. Because the stoichiometric AFR changes with gasoline and ethanol content, lambda is a clearer calibration language than quoting one gasoline AFR number for every fuel.

We compare requested lambda with actual lambda under spool, peak torque and high rpm. We also compare banks on multi-bank engines. A consistent difference between banks may point to sensor, injector, intake or mechanical variation. A mixture that follows target until fuel pressure falls gives a different diagnosis from a mixture that is offset across the entire run.

The richest value is not automatically the safest or most powerful. Excess fuel can reduce combustion efficiency, dilute oil and hide an unresolved airflow or temperature issue. The correct target depends on the engine, fuel, load and component strategy.

Short-term and long-term fuel trims

Fuel trims show how the ECU corrects its base fuel calculation during closed-loop operation. Short-term trim is the immediate response; long-term or learned adaptation represents correction accumulated over time and operating regions.

Large trim does not identify the cause by itself. Positive correction can result from unmetered air, low fuel delivery, injector scaling, an intake change or a sensor issue. Negative correction can indicate excessive modeled fuel, incorrect injector data, pressure error or vapor influence. Bank differences can help narrow the search.

Full-load enrichment may operate through a different control path, so normal cruise trims do not guarantee correct high-load fueling. Both operating regions matter.

Low-pressure fuel supply

The in-tank or low-pressure system feeds the high-pressure pump on direct-injection engines. We compare requested and actual supply pressure, pump command and controller behavior where available.

A high-pressure pump cannot maintain rail pressure if its inlet supply collapses. Replacing the HPFP without checking the low-pressure side may leave the real limitation untouched. Conversely, high pump command with stable pressure may simply reflect the expected demand at that output.

Ethanol blends require greater fuel volume for the same air mass. A low-pressure system that is comfortable on pump gasoline may reach its limit at a higher ethanol content even if the ignition side benefits from the fuel.

High-pressure rail target and actual pressure

Direct injection requires fuel at high pressure so the injector can deliver the commanded mass within a limited crank-angle window. As engine speed and airflow rise, the available time per cycle decreases while fuel demand increases.

We compare rail-pressure target with actual pressure through the entire pull. The first sign of limitation may be a small but growing separation at high rpm. If pressure continues falling, injector delivery and atomization can no longer be assumed to match the calibration model.

Commanding more pressure cannot create mechanical pump capacity that does not exist. If the system is at its limit, the correct solution may be a pump upgrade, injector or supplemental-fuel change, reduced ethanol content or a lower airflow target.

Injector pulse width, duty and injection window

Fuel pressure alone does not prove that the injectors have sufficient time to deliver the requested mass. Port injectors are often evaluated through pulse width and duty cycle. Direct-injection systems must also complete injection within an appropriate combustion window.

At high rpm, an injector can approach its timing boundary even while rail pressure appears stable. Changing the start or end of injection affects mixture preparation and combustion. Supplemental port injection introduces another controller and distribution pattern that must be coordinated rather than treated as an independent fuel source.

Ignition timing

Ignition advance must be evaluated relative to load, rpm, fuel, temperature and combustion speed. A timing value that is appropriate at one operating point may be unsuitable at another. Comparing raw timing numbers between unrelated engines is rarely useful.

We look at the base request, delivered timing, torque-related reductions and cylinder-specific corrections. Power is not created by advancing timing until the knock controller removes it. The objective is repeatable combustion that produces the intended torque without relying on continuous correction.

Knock response and cylinder-specific corrections

Modern ECUs use knock sensors and sophisticated filtering to identify combustion vibration. The resulting corrections can be displayed in several ways: retard values by cylinder, adaptation factors, knock intensity, individual timing efficiency or internal state variables.

One correction is not a diagnosis. We examine magnitude, duration, cylinder pattern, load area, temperature and repetition. A small isolated event during a shift or road disturbance is different from several cylinders repeatedly removing timing at the same high-load rpm. One cylinder behaving differently on every run may justify checking its plug, coil, injector, compression or mechanical condition.

Fuel quality must be considered. A calibration developed on consistent 93-octane fuel cannot be fairly validated after the tank is filled with a lower or unknown grade. Eagle Tuning asks for the fuel the file was designed around because the log will reveal the difference even if the pump label does not.

Misfire counters and combustion stability

A hard misfire may create a code, but early or intermittent events can appear first in cylinder counters. We monitor misfire behavior during idle, transition and load when the ECU provides reliable data.

The pattern helps direct diagnosis. A single-cylinder event may suggest ignition, injector or mechanical condition. Random multi-cylinder activity under high boost may indicate plug gap, fuel quality, mixture or excessive cylinder pressure. A false counter can also occur on some combinations, which is why we correlate it with torque disturbance, lambda and other evidence.

Camshaft timing and variable valve control

Requested and actual intake and exhaust cam positions influence airflow, spool, residual gas, combustion stability and high-rpm power. A slow or inaccurate cam response can make a turbo calibration appear inconsistent.

We compare target and actual angle, control duty and adaptation where available. If the mechanical system cannot reach its commanded position, changing load or boost targets will not repair it. Cam timing is also a calibration tool, but it should be revised with an understanding of its effect on cylinder filling and exhaust energy.

Coolant, oil and modeled component temperature

Coolant temperature alone does not show whether the complete engine is ready for full load. Oil warms more slowly and directly affects bearing, piston and turbocharger lubrication. Transmission temperature changes clutch behavior and permitted torque. Some ECUs also calculate component, catalyst, turbine or exhaust temperature models that influence protection.

We watch temperature before, during and between pulls. A car that begins every run at a different thermal state cannot produce a clean comparison. Development includes cooling periods when necessary, because forcing repeated pulls through rising temperature does not teach us what a calibration change accomplished.

Exhaust gas temperature

EGT may be measured directly or modeled by the ECU. It is influenced by load, lambda, ignition timing, exhaust backpressure, turbine efficiency and combustion. High temperature can cause the ECU to enrich, reduce load or change ignition strategy.

Modeled EGT is still useful when its basis and limitations are understood. We analyze the trend and the resulting protection behavior rather than treating one estimated number as a laboratory measurement.

Torque monitoring and active limiters

Modern ECUs often contain several parallel torque paths: driver request, engine capability, transmission limit, traction limit, temperature limit, component protection and diagnostic monitoring. The lowest permitted path can become the active request.

Logging only one torque channel may not reveal the limiting source. RAM access can expose intermediate requests and limiter states. This allows us to see whether the engine is failing to produce requested torque or whether another system intentionally reduced the request first.

Torque monitoring also checks whether modeled and delivered output remain coherent. Incorrect torque representation can lead to throttle closure, diagnostic intervention or poor transmission behavior even if the boost curve appears normal.

TCU torque request, clutch behavior and shift intervention

The transmission is part of the calibration. During a shift, the TCU may ask the engine for a temporary torque reduction. It may calculate clutch pressure from reported engine torque and monitor clutch slip or input-output speed differences.

Where the available protocol allows it, Eagle Tuning logs engine and transmission data together. We examine requested reduction, actual engine response, shift duration, clutch behavior, gear, transmission temperature and the return to full torque after the shift.

A sharp power dip may be intentional and necessary. The problem is not that torque reduction exists; the question is whether it is correctly timed, correctly sized and followed by a clean recovery. Removing every torque intervention can make the graph look uninterrupted while creating poor shift quality and unnecessary clutch stress.

Dual-ECU and supervisory-controller data

Some high-output vehicles use separate master and slave engine controllers. Certain Mercedes platforms add a CPC that supervises powertrain torque and vehicle-level limitations. Logging only one controller can hide half of the decision process.

On supported combinations, VehiCAL can synchronize multiple units. This lets us compare bank behavior on dual-ECU engines, confirm that both controllers receive coherent requests and identify whether an external controller is limiting torque. A twin-turbo V8 cannot be evaluated completely if one bank or one control path is invisible.

A Practical Parameter Map

Why More Boost Is Not Always More Power

Manifold pressure is resistance to airflow as much as it is evidence of compression. Two turbochargers can produce the same pressure while moving different mass because their efficiency and flow capability differ. Hotter compressed air is less dense. Higher exhaust backpressure can increase pumping work and residual gas. A restrictive head, intercooler or throttle path can raise pressure without delivering a proportional oxygen increase.

This is visible in a good log. If requested boost rises but mass airflow flattens, intake temperature climbs and ignition falls, the extra pressure may add little useful torque. If a larger turbo produces the same pressure with more airflow, lower wastegate effort and better timing stability, the engine can make more power without an impressive-looking boost increase.

Eagle Tuning follows the delivered air mass and torque result. We do not sell a boost number.

Why One Timing-Correction Screenshot Does Not Tell the Story

Online tuning discussions often reduce a log to a screenshot of six cylinder corrections. The image may lack engine speed, load, fuel, temperature, lambda and the moment at which the correction occurred. Without that context, the value is easy to misinterpret.

Knock control is dynamic. The ECU can adapt by cylinder and operating region. A correction may be transient, learned, noise-related or the beginning of a repeatable high-load pattern. Its importance depends on whether it returns at the same rpm and load, grows as temperature rises, appears on one cylinder or several, and coincides with mixture or pressure behavior.

Eagle Tuning does not ignore correction, and we do not panic at every nonzero value. We investigate the pattern. We may repeat the run after controlling fuel and temperature, swap an ignition component between cylinders, inspect plugs, perform mechanical testing or revise the torque and ignition strategy. Data directs the next test.

Fuel Pressure: The Limitation That Peak Boost Cannot Reveal

A vehicle can reach the requested boost while the fuel system is approaching its limit. The driver may not feel the problem immediately because the ECU compensates, shortens the event or reduces load before a fault is stored.

On a direct-injection engine, the high-pressure pump must compress enough fuel for every combustion event. At high rpm there is less time available, and ethanol increases the required volume. If actual rail pressure begins separating from request, injector delivery no longer follows the original assumptions. Lambda may eventually move away from target or the ECU may intervene.

This is why Eagle Tuning checks fuel pressure before increasing airflow and again after every meaningful power revision. A turbo's advertised capability does not prove that the vehicle's pumps and injectors can feed it. The log decides where the installed system is comfortable.

Datalogging a Stock Vehicle Before Tuning

The baseline log is one of the most valuable recordings in the process. It documents how the car behaves before our calibration is introduced. If an issue already exists, we can identify it before additional load makes it more obvious.

We look for fault codes, plausible sensors, stable fuel pressure, expected lambda behavior, normal throttle operation, boost control, temperature, ignition quality and transmission response. The exact review depends on the engine and the planned stage.

A baseline also prevents false attribution. If cylinder three showed the same repeatable correction on original software, it is not honest to pretend the tune created it. If fuel pressure was already weak, raising the target will not repair the pump. If the throttle closed at the same point on stock software because of a transmission request, that behavior must be understood before changing torque structure.

When the car is healthy, the baseline becomes a reference for improvement. We can compare response, airflow, torque delivery and temperature behavior under the same logging method.

Datalogging Stage 1

Stage 1 normally retains factory performance hardware, but that does not make logging optional. The calibration uses more of the available turbo, fuel and drivetrain capacity. The vehicle must demonstrate that those systems can support the request.

For a turbocharged gasoline engine, we commonly focus on load, boost tracking, wastegate effort, throttle, air mass, lambda, fuel pressure, ignition timing, cylinder corrections and intake temperature. If the transmission is near a torque boundary, we include TCU data where available.

The objective is not to make every car reach the largest database figure. One vehicle may accept the expected request cleanly; another may show fuel, ignition or temperature behavior that justifies a different final target. Both can receive a genuine custom tune because the decision is based on their data.

Datalogging Stage 2

Stage 2 adds hardware variables. An intercooler changes charge-temperature behavior. An intake or inlet may change restriction or sensor response. A performance exhaust can alter turbo operation. An upgraded fuel pump changes available delivery. Each part must work as expected in the assembled vehicle.

The logger confirms whether the supporting modification solved the intended limitation. A larger intercooler should improve temperature rise and recovery. A stronger high-pressure pump should keep actual pressure closer to target under increased demand. A freer inlet may reduce turbo effort at a given airflow. A charge pipe provides no benefit if a connection leaks.

Because more variables have changed, requested-versus-actual comparison becomes even more important. “Stage 2 hardware installed” is not the same as “Stage 2 system validated.”

Datalogging Stage 3 and Hybrid-Turbo Builds

Stage 3 changes the compressor, turbine or complete turbo system in most applications. Wastegate behavior, spool, high-rpm flow, fuel demand and torque shape can differ substantially from the original unit. A generic stock-turbo logging template is not sufficient.

Development begins conservatively. We verify actuator setup, sensor range, pressure control and fuel delivery before approaching the final target. We examine spool in a controlled gear, then extend the useful rpm and load region as the system proves stable. The calibration is not finished merely because the turbo can create the requested pressure.

Hybrid-turbo builds especially benefit from high-resolution wastegate and airflow data. Two units using factory-style housings can still have different wheels, clearances, actuators and turbine response. The file must control the turbo installed on the car, not the product description on the invoice.

At higher output, engine and TCU torque coordination, low-pressure fuel supply, injection window and thermal repeatability become central. VehiCAL's deeper access is valuable because the limit may exist inside a model or controller state that a generic logger cannot expose.

Live Tuning: Changing Calibration While the Engine Is Running

Traditional ECU development follows a repeated cycle: stop recording, switch off the vehicle, prepare a revised binary, write the complete file or calibration area, restart the vehicle, restore test conditions and log again. That workflow remains necessary on many ECUs and for permanent final programming, but it consumes time and interrupts the exact operating state being calibrated.

On supported ECUs, VehiCAL LIVE tuning allows calibration changes to be synchronized to the ECU while the engine is running. The logger monitors a binary file, and supported changes made through WinOLS or another editor are transferred into the ECU's calibration RAM. Logging continues at the same time.

This is especially useful for fine development. Instead of waiting through a full flash cycle after every small change, the calibrator can adjust an appropriate map, observe the response and continue. Idle behavior, boost pre-control, torque shaping, selected fuel or ignition areas, and other supported calibration regions can be refined more efficiently.

The word “supported” matters. LIVE is not available on every ECU, and it does not make every possible change appropriate while the engine is running. The controller must have a supported advanced logging protocol and the required patching or configuration. Calibration-RAM space is finite. Some code or monitoring areas cannot be changed through this method. Final changes are written permanently after development.

Used correctly, LIVE tuning removes delay from the feedback loop. It does not remove the need to understand the ECU.

How WinOLS and VehiCAL LIVE Work Together

WinOLS is our calibration development environment. It allows us to organize the binary, identify maps and related structures, compare versions, apply checksums through the appropriate workflow and maintain a controlled project history.

With VehiCAL LIVE on a supported ECU, a binary file is selected for monitoring. When the file changes, the logger synchronizes the eligible calibration differences to the ECU. With the applicable WinOLS simulator/realtime-export functionality, changes can be exported as they are made, allowing them to reach the ECU without manually creating a new file for each fine adjustment.

The value is immediate cause and effect. If a boost pre-control region is being refined, we can change the relevant area, repeat the controlled operating point and see whether wastegate behavior approaches target more cleanly. If a torque transition is abrupt, we can reshape the appropriate request and observe the new progression. If an idle or partial-load region requires attention, we do not need a full reflash for every small step.

VehiCAL's documentation states that after the initial synchronization, calibration changes can be transferred in less than a second on supported configurations. The practical saving is not only the write time. It also reduces repeated ignition cycles, allows the vehicle to remain in a more consistent thermal state and keeps the calibrator focused on the same area of behavior.

Once the development state is correct, the current changes are incorporated into the final binary and written permanently through the appropriate programming method.

What Live Tuning Does Not Mean

LIVE tuning is not random experimentation at full load. It is not a way to bypass mechanical inspection. It does not mean every table can be changed without consequence, and it does not replace the final flash.

The calibrator must know the function, axes, units, interpolation and dependencies of the map being changed. Some changes affect several torque or airflow paths. A value that appears to solve one operating point may create a problem elsewhere. The same controlled logging discipline applies before and after the change.

LIVE also uses temporary calibration memory. According to VehiCAL's current documentation, the changes are lost when the ignition is cycled until they are incorporated into a permanently flashed file. CALRAM capacity is limited, so broad base changes are normally included in an initial flashed file and LIVE is then used for targeted refinement.

This makes the feature powerful for development and intentionally structured. We establish a correct base, fine-tune supported areas with live feedback, save the project state and complete a permanent final write.

ECU Families With VehiCAL LIVE Availability

The table below reflects the supported combinations in the technical compatibility information supplied for this page. Availability is determined by the exact ECU family, protocol, software version and required patching method—not only by vehicle badge. “LIVE only” in the patching column means the ECU patch is specifically used for LIVE functionality in that combination. A vehicle must be identified before support is confirmed.

This is not a promise that every vehicle carrying one of these ECU names is immediately compatible. Manufacturers use multiple hardware numbers, software structures and security levels. Eagle Tuning confirms the controller identification and current support before planning a LIVE session.

One Vehicle, One Calibration Session, One Priority

Eagle Tuning is a calibration business. Our working day is organized around ECU and TCU software development, vehicle data and performance validation. We are not operating as a general repair facility where the tuner has to stop halfway through your session to finish a brake job, install a stereo, diagnose a window regulator or complete routine electrical work on another vehicle.

Specialization changes the quality of the appointment. When your car is scheduled for custom tuning, we prepare for that controller, engine and hardware combination. The identification is reviewed, the logging channel groups are selected, the original software is preserved, and the calibration project is organized before development moves forward. During the appointment, the same vehicle remains the focus through baseline testing, file preparation, logging, analysis and revisions.

This matters because tuning requires uninterrupted concentration. A modern torque-based ECU can contain several interacting request and limitation paths. One unusual throttle closure may require aligning engine, transmission, pressure, temperature and torque data on the same timeline. That work cannot be performed well if the calibrator is constantly moving between unrelated repair jobs.

Our role is also clear. If data reveals a mechanical issue, we identify the evidence and explain what system needs attention. We do not conceal a weak pump, leaking charge connection, worn ignition component or slipping clutch with software. The necessary mechanical repair can be completed before calibration continues. The tune is then developed on a vehicle capable of supporting it.

What Your Eagle Tuning Appointment Looks Like

The process begins before the vehicle arrives. We request the VIN, model year, engine, transmission, current modifications, fuel, previous software and the owner's objective. A Stage 1 daily driver requires a different logging plan from a hybrid-turbo project with supplemental fueling. Accurate information lets us reserve the correct time and prepare the correct tools.

When the car arrives, we confirm the hardware and discuss the desired behavior. Peak power is only one part of the target. We ask how the vehicle is used, which fuel will be available, whether response or maximum high-rpm airflow is the priority, and whether low-gear torque should be managed for traction or drivetrain capacity.

The control units are identified and scanned. The original file is read or obtained through the correct programming route, and a backup is retained where the tool and ECU method permit it. We then collect baseline data. If the baseline shows a condition that makes further load inappropriate, development pauses and the evidence is reviewed with the owner.

Once the baseline is accepted, we build the initial custom calibration. The first tuned log is intentionally a development run. It shows how the individual car responds to the new request. We analyze it, make the necessary revisions and repeat the relevant test. Some projects converge quickly. Others require more iterations because the ECU, hardware or previous modifications introduce additional variables.

While this is happening, the customer does not need to stand next to the car watching progress bars. Our waiting area is designed for a long custom appointment. You can have coffee, watch a movie, use the PlayStation, work on your laptop or simply relax. We handle the vehicle from beginning to end and bring you into the discussion when there is useful data, a hardware decision or a final result to review.

The appointment is complete when the calibration is validated, not when the first file finishes writing.

The Eagle Tuning Development Loop

Our entire workflow can be summarized as a repeating technical loop: establish a known condition, make a controlled change, measure the response, interpret the relationship, revise only what the evidence supports, and test again.

The first step is identification. A model name is not enough because manufacturers change ECU hardware and software within the same production range. The second step is the mechanical and diagnostic baseline. The third is defining fuel and the intended torque curve. Only then is the base calibration created.

After writing, the vehicle is brought to the correct operating state. We confirm that the basic controls are normal before applying full load. The development log is captured with a channel group selected for that phase. A boost-control revision and a fuel-system investigation do not necessarily use the same priority list.

The review identifies the cause-and-effect sequence. We do not change five unrelated areas and then guess which one improved the result. Focused revisions preserve traceability. The next log is collected under a comparable condition so the effect can be evaluated.

This loop continues until the important requested and actual values agree within the expected behavior of the system, the torque curve matches the project goal and the result is repeatable. Final part-throttle, transition and shift checks ensure that full-load performance did not come at the expense of normal driving.

A Real Example of How Logs Change the Diagnosis

Imagine a turbocharged direct-injection vehicle that feels strong in the middle of the rev range but loses power near redline. A boost-only log shows actual pressure dropping below target. The easy conclusion is that the wastegate needs more command.

A complete log may tell a different story. Pedal request remains high. Permitted torque begins falling as high-pressure fuel separates from target. Lambda then moves away from request. The ECU reduces load, the throttle closes slightly, and boost falls after the intervention. The boost drop is the last visible symptom, not the first cause.

Adding wastegate duty would ask the turbo for more air while the fuel system is already unable to support the existing airflow. The correct response is to address fuel capacity or reduce the high-rpm request.

Consider another car with a short boost spike during spool. Fuel pressure and lambda remain stable, but electronic wastegate position starts too closed, actual pressure crosses target, and the throttle reacts to control torque. The calibration solution is not a larger intercooler or new pump. The pre-control and torque transition need refinement.

Both cars could be described by a driver as “losing power.” Only the chronological relationships identify the correct action.

Road Dyno Data and ECU Data Should Agree

Performance measurement becomes more useful when it can be connected to ECU behavior. If the Road Dyno curve gains torque in the intended area after a revision, the ECU log should show the corresponding change in air mass, ignition efficiency, boost control or torque request. If the measured curve does not improve despite more pressure, the log may show rising temperature, reduced timing or airflow saturation.

We also examine the shape of the curve. A calibration that creates a very large torque peak and then declines may produce a marketable number but feel less consistent than a curve that builds progressively and holds airflow. The best shape depends on the engine, turbo, transmission, traction and owner preference.

Before-and-after comparisons should use the same vehicle, fuel, measurement configuration and similar conditions. Mixing factory crank horsepower, calculated road power and unrelated chassis-dyno figures produces more argument than information. Eagle Tuning uses measurement as a development instrument, not merely as a certificate printed at the end.

Remote Datalogging and In-House Datalogging

Some calibration projects can be developed remotely when the customer or dealer has a supported flashing and logging platform and can collect clean data. The engineering principles remain the same: identify the exact vehicle, establish a baseline, use the specified fuel, load the controlled base file, record the requested channel set, review it and revise.

Remote logging places more responsibility on the person with the vehicle. The correct file must be written successfully, the logging profile must be complete, the test must occur in the requested gear and rpm range, and the operator must stop if the vehicle behaves unexpectedly. A partial log with missing fuel pressure or incorrect units may need to be repeated before any meaningful revision can be made.

In-house tuning gives Eagle Tuning direct control over the complete process. We can verify hardware, select channels, reproduce the operating point, change the calibration and immediately collect the next run. On supported LIVE applications, that feedback loop becomes even faster. For complex Stage 3 combinations, unusual drivability concerns or cars with uncertain mechanical history, in-house development is usually the more complete route.

Remote does not have to mean generic. The distinction is whether the file is revised from the individual vehicle's data.

Why a Generic OTS Log Review Is Not the Same as Custom Tuning

An off-the-shelf map is designed to cover a range of vehicles with a stated hardware and fuel configuration. Logging an OTS file can confirm whether the individual car appears to operate acceptably within that map, but the file remains a broad product unless the calibration itself is revised for the car.

Eagle Tuning's process uses the log to develop the file. If the vehicle needs a different boost transition, torque curve, fuel-pressure strategy, sensor scaling or ignition response, the calibration changes. The log is not simply graded as “good” or “bad.” It becomes the input for the next version.

This distinction is most visible when hardware moves away from a standard package. A hybrid turbo, upgraded pump, unusual intake, supplemental injection or different transmission software may not match the assumptions of a generic file. Custom calibration defines those assumptions from the actual build.

Mechanical Problems That Datalogging Can Expose

Datalogging does not replace physical diagnosis, but it can identify the system and operating condition in which a problem appears. A pressure leak may show as rising wastegate effort with airflow and boost below request. A weak low-pressure pump may reveal itself before the high-pressure rail falls. A marginal coil may create repeatable correction or misfire on one cylinder only under peak torque. A slipping clutch can appear as engine speed rising without the expected relationship to vehicle or transmission speed.

Variable cam timing that cannot follow its target may reduce spool or high-rpm breathing. A dirty or incorrectly scaled airflow sensor may create fuel-trim patterns. A diverter valve may fail to hold pressure. A thermostat or cooling issue may place the engine in a temperature strategy that reduces output. A previous calibration may report torque inaccurately and cause TCU behavior that looks mechanical.

The log narrows the search; physical checks confirm it. Pressure testing, smoke testing, plug inspection, coil swapping, compression testing, leak-down testing, fuel-volume checks and actuator inspection may follow depending on the evidence.

The important point is that Eagle Tuning will not attempt to “tune around” a failing part. Software can adjust a control target. It cannot restore compression, seal a cracked pipe or create pump capacity beyond the hardware.

Preparing Your Car for a Datalogging Appointment

Arrive with the fuel grade and ethanol content agreed during booking. Do not mix unknown additives immediately before the appointment. If the vehicle uses an ethanol blend, measure or report the actual content through the installed system where possible.

The engine should be correctly serviced. Spark plugs, ignition coils, oil, filters and fluids should be appropriate for the platform and target. Existing warning lights, misfires, leaks or unusual behavior should be disclosed before testing. If the car was recently modified, inspect clamps, electrical connections, vacuum lines and fluid levels.

Send the complete modification list, including brands and part numbers when known. “Full bolt-ons” does not identify the turbo inlet, pressure sensor, pump, injectors or transmission software. If the vehicle already has ECU or TCU tuning, tell us which platform and version was installed.

Tires and brakes must be in appropriate condition for a loaded road test. Loose items should be removed from the cabin and trunk. If a mechanical issue appears during baseline logging, it is better to correct it and return than to force the calibration process forward.

What the Customer Receives From a Log-Driven Tune

The main deliverable is the calibrated vehicle, but the value is broader than a binary file. The customer receives a setup whose output has been observed on the individual car and revised where necessary. The final target reflects the installed hardware, fuel, mechanical condition and intended use.

We can explain what limited the original configuration, which supporting part became important, how the ECU and transmission responded, and why the final torque shape was selected. If the car has more hardware capability than the fuel or drivetrain can support, that distinction is made clear. If the data shows healthy margin, that is also evidence rather than assumption.

The calibration project remains organized for future changes. If the owner later installs a different turbo, fuel pump, intercooler or transmission setup, we have a known reference. The next version is developed from an established history instead of starting with an unknown file.

Common Datalogging Myths

“If there is no check-engine light, the tune is fine.”

Diagnostic thresholds are designed to identify defined faults, not to certify maximum-performance calibration. The ECU can reduce torque, lose fuel-pressure margin or operate with high wastegate effort without storing an immediate code.

“The car feels fast, so the log is unnecessary.”

Pedal mapping and a sharp midrange torque hit can make a car feel dramatic. That sensation does not prove high-rpm airflow, mixture, ignition or repeatability. A strong tune should feel good and produce clean data.

“One clean pull means development is complete.”

One pull may be enough to answer a narrow question, but temperature, adaptation, gear and fuel conditions can change behavior. Important projects are checked for repetition and relevant transitions.

“More logged channels always means a better log.”

Excess channels can reduce sampling speed and bury the event. The best channel list is the smallest set that can distinguish the possible causes while preserving the required rate.

“Zero ignition correction is the only acceptable result.”

Correction must be interpreted by system, magnitude, duration, location and repetition. A nonzero value can be meaningful or incidental. The goal is understood, repeatable combustion behavior—not editing a screenshot until every cell shows zero.

“Boost reached target, so the engine made the expected power.”

Pressure does not prove air mass, fuel delivery, ignition efficiency or torque. Temperature and restriction can allow boost to rise while useful airflow gains very little.

“Live tuning means the ECU never needs to be flashed.”

LIVE changes are temporary working changes in calibration memory. After development, the final state is incorporated into a permanent file and written through the appropriate method.

“Datalogging is only necessary for Stage 3.”

Stage 3 requires deeper development, but Stage 1 and Stage 2 still increase load and rely on the condition of the individual turbo, fuel system, ignition and transmission. Every stage benefits from evidence.

How We Decide That a Calibration Is Finished

A finished calibration has no single universal numerical checklist because the available channels and control strategies differ. The decision is based on several forms of agreement.

The ECU reaches the intended load and torque without unexplained limiter conflict. Actual boost follows the planned curve with appropriate wastegate control and without repeated oscillation. The fuel system maintains the pressure and injector behavior required for the commanded lambda. Combustion is stable on the specified fuel. Temperature response is understood. Engine and transmission torque coordination remains clean during shifts. The car drives properly outside full load.

The result must also repeat. If power disappears as soon as the vehicle is fully warm, the initial pull did not represent a finished tune. If the file requires one unusually good tank of fuel to avoid constant correction, the fuel requirement or target is wrong. If the TCU repeatedly closes the throttle because reported torque and permitted torque disagree, peak boost cannot compensate for incomplete coordination.

Completion means the hardware and control system tell the same story.

Why Eagle Tuning Is Different

We tune because tuning is our work. The equipment, appointment structure and shop environment are built around calibration rather than adding tuning as a side service.

We have master-level flashing tools for different ECU and TCU families because no single interface covers every platform equally. We use VehiCAL when deep RAM logging and LIVE functionality are supported. We work in WinOLS and maintain vehicle-specific projects. We use real-road logs and Road Dyno data to evaluate the complete vehicle under load. We coordinate engine and transmission behavior instead of treating the ECU as an isolated box.

Most importantly, we spend time with the data. The tool does not make the decision for us. VehiCAL can expose thousands of measurements, but the tuner must select the right variables, understand their roles, identify the first cause in the sequence and make a controlled calibration change. WinOLS can apply a map revision, but the tuner must know why that map should change and what other strategies depend on it.

Our customer is not paying for the seconds required to write a file. The customer is paying for identification, analysis, development, access to specialized tools, controlled revisions and the judgment required to know when the vehicle has reached the correct result.

Frequently Asked Questions About ECU Datalogging

How long does a custom datalogging appointment take?

The time depends on ECU access, the tuning stage, vehicle condition, logging support and the number of revisions. A straightforward healthy Stage 1 vehicle may progress faster than a custom turbo and fuel-system build. Eagle Tuning schedules the appointment around development rather than promising that every car will be completed in an artificially short window.

Do you log the car before tuning?

Yes. Baseline data gives us a reference and helps identify conditions that existed before the custom file. The depth of the baseline depends on the vehicle and project.

Do you log after every file revision?

Meaningful revisions are validated with the relevant data. LIVE tuning can shorten the loop on supported ECUs, while other controllers require a conventional write-and-log cycle.

Is VehiCAL available for every car?

No. Protocol depth depends on ECU family and software support. Some vehicles have full RAM logging and LIVE capability, others have advanced or basic logging, and some require a different logging platform. Eagle Tuning selects the best available tool for the controller.

Does RAM logging change the ECU?

Logging itself records selected working values. Certain advanced protocols may require a supported patch to provide deep access. LIVE tuning is a separate function that temporarily changes eligible calibration areas during development. The exact workflow is confirmed for the ECU before use.

Can you log the ECU and TCU at the same time?

On supported combinations, yes. VehiCAL can synchronize engine and transmission data and can support master/slave ECU arrangements and certain supervisory controllers. Coverage depends on the specific modules.

Can you tune my car remotely from logs?

Many vehicles can be custom tuned remotely with a supported flashing and logging platform. The customer or dealer must follow the logging instructions and provide complete, clean data. Complex builds and unresolved mechanical issues are often better handled in-house.

Why do you need a pull from low rpm to the upper range?

The full progression shows spool, peak torque, fuel demand, high-rpm airflow, temperature and the points at which limiters or control deviations appear. A short high-rpm burst does not show how the system reached that condition.

Why can’t you tune from a photo of my boost gauge?

A gauge shows one output. It does not show load request, throttle, wastegate control, air mass, lambda, fuel pressure, ignition, temperature or TCU intervention. The same boost value can occur under very different engine conditions.

What happens if the log reveals a mechanical problem?

We stop increasing load, explain the evidence and identify the next diagnostic or repair step. Calibration continues after the vehicle is capable of supporting the planned test.

Does a lower peak number mean the tune is worse?

No. Measurement method, fuel, weather and correction can change the number. A slightly lower peak with stronger repeatability, cleaner high-rpm airflow and controlled torque may be the better and faster calibration. The complete curve and data matter.

Can LIVE tuning be used on my BMW, Mercedes, Audi or Porsche?

Possibly. Support is based on the exact ECU family and software. Many Bosch MED17, EDC17, MG1 and MD1 applications have LIVE capability, but the vehicle must be identified and the required protocol or patch must be confirmed.

Do I have to wait next to the car all day?

No. Our customer area has coffee, a television and PlayStation so you can relax, watch a movie or work while we concentrate on the vehicle. We will update you when there is a result or decision worth discussing.

Datalogging Is the Difference Between Loading a File and Developing a Tune

Anyone with access to a flashing interface can transfer a binary into an ECU. The quality of the result depends on what happens before and after that transfer.

Eagle Tuning starts with the individual vehicle. We establish the original condition, identify the hardware and software, define the fuel and objective, select the correct parameters and place the powertrain under meaningful load. We compare request with delivery. We use the data to revise the file. On supported platforms, VehiCAL RAM logging gives us unusually deep and fast access to the ECU's internal behavior, and WinOLS LIVE tuning shortens the path from observation to controlled change.

We then repeat the process until the engine, turbo, fuel system and transmission operate as one calibrated package.

That is why we talk about logs so often. Logging is not an accessory to the tune. It is how we know whether the tune is real.

When you bring your car to Eagle Tuning, you are not purchasing a stage name copied from a list. You are booking focused development time for your vehicle. Have a coffee, put on a movie, play PlayStation or get some work done. While you are comfortable, we will be doing what we do every day: reading the car, understanding the data and building the calibration from the first baseline pull to the final validated result.

Book a Log-Driven Custom Tuning Session

To request an appointment, send Eagle Tuning your VIN, model year, engine, transmission, complete modification list, current tuning platform, fuel and desired result. Include any existing fault codes or unusual behavior. If you are planning new hardware, contact us before purchasing parts so the turbo, fuel, cooling and drivetrain combination can be matched to one target.

Eagle Tuning Performance is located at 199 Strong Road, South Windsor, Connecticut. Appointments are structured around the vehicle so that calibration receives the time and attention it requires.

Bring us the car. We will bring the data, tools and focus.
